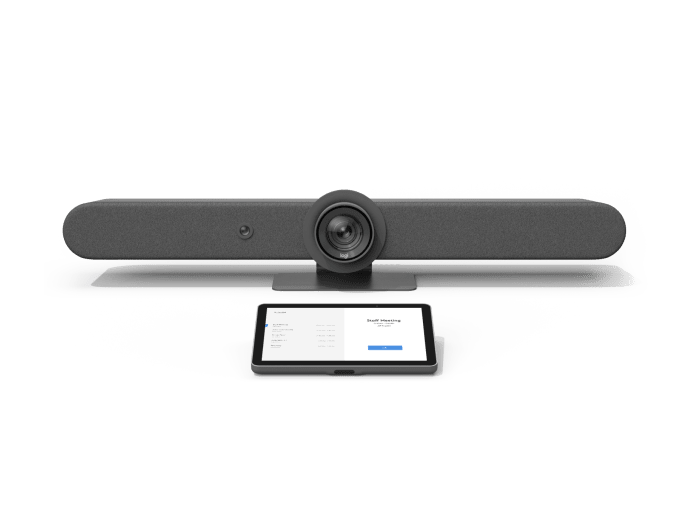

Rally Bar + Tap IP
Rally Bar + Tap IP
BUNDLE INCLUDES
SPECS
-
Dimensions

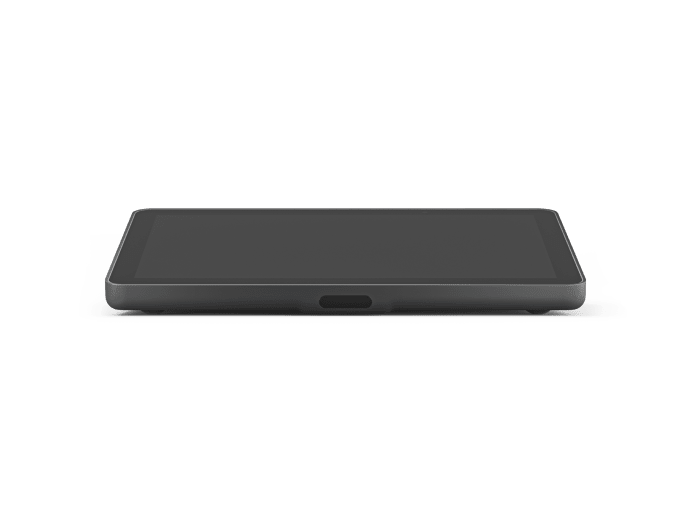

Tap IP
- Height: 56.1 mm
- Width: 246.2 mm
- Depth: 171.3 mm
- Weight: 1.0 kg

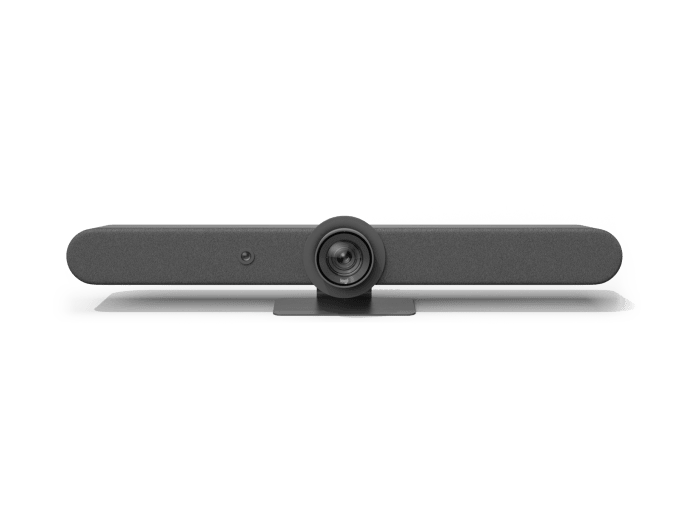

Rally Bar
- Height: 164 mm
- Width: 910 mm
- Depth: 130.5 mm
- Lens Depth: 28.8 mm
- Weight: 7.08 kg
-
Technical Specifications
General Specifications
-
Tap IP
- Touch Screen: 257 mm diagonal screen with 14° display angle
- Resolution: 1280 x 800
- Cabling: Power over Ethernet (PoE) cable (not included), IEEE 802.3af Type 1, Class 3 device
- Cable Management: Internal cable retention and strain relief system
- Ethernet: 10/100 Mbps
- Wi-Fi: 802.11a/b/g/n/ac
- Device Management: Logitech Sync
- Color: Graphite
- Mounting: 100 mm x 100 mm VESA FDMI
-
Rally Bar
- Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platform
- Enclosure: All-in-one enclosure with a patented suspension system to eliminate vibration-induced camerashake and audio interference
- Device Management: Logitech Sync
- Displays Supported: 2
- Display Resolution: Up to 4K
- Colors: Graphite, White
Certifications & Compatibility
- For the latest information on certification and compatibility, visit www.logitech.com/support/vc-certifications.
Certifications
-
All components included in the room solution bundle are certified for
- Zoom Rooms
- Microsoft Teams on Android
- Google Meet on Android
Appliance Mode
-
Supports compatible video conferencing software in appliance mode (no PC required), including
- Zoom Rooms
- Microsoft Teams on Android
- Google Meet on Android
- Contact the manufacturer for additional information on pending and granted certifications.
-
Tap IP
-
Package Contents
- Logitech Rally Bar video bar
- Power supply
- Cables
- Lens caps
- Remote control
- User documentation
- Logitech Tap IP touch controller
- VESA mounting screws (4)
- Microfiber Cloth
- Documentation
-
Warranty Information
Standard: 2-year limited hardware warranty included
Extended: 1-year and 3-year extended warranties available at the time of hardware purchase.
Contact your reseller for availability. -
Part Number
- 991-000425
